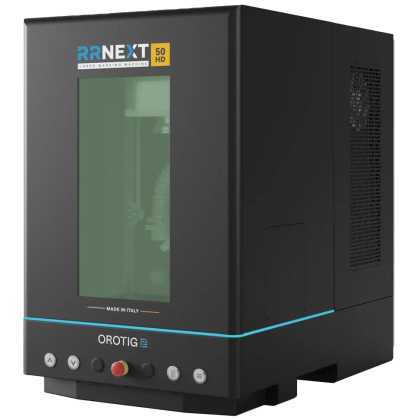

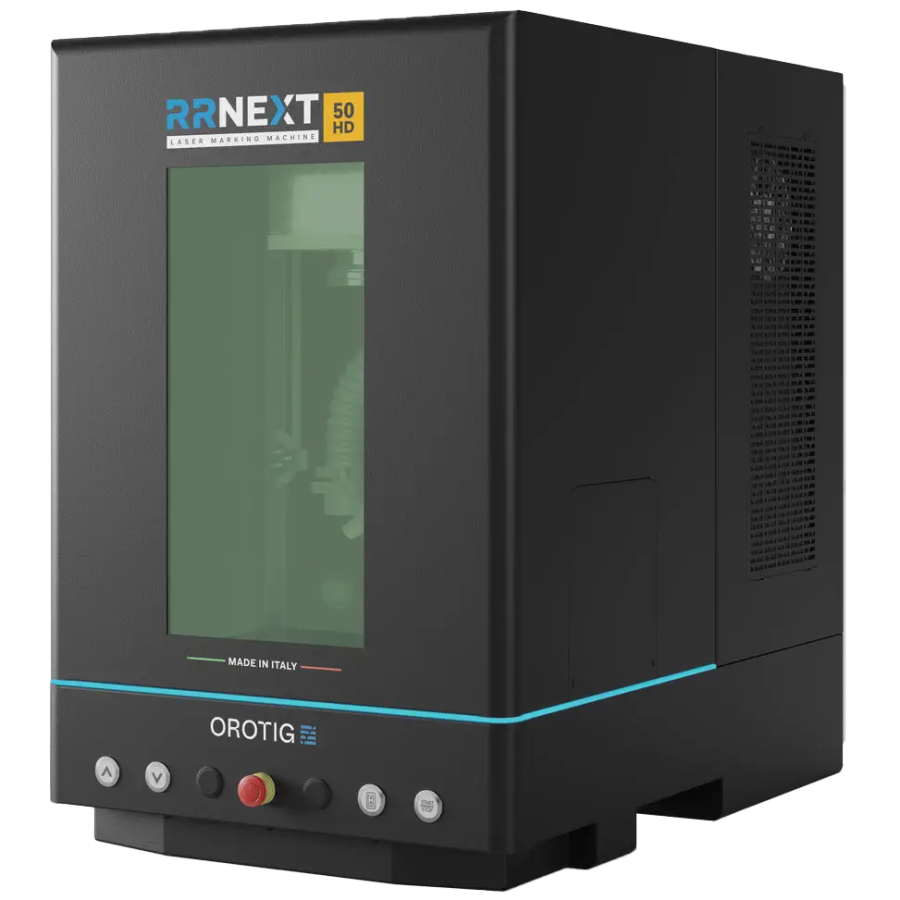

The Orotig RR Next represents a cutting-edge evolution in compact laser engraving and cutting systems, tailored specifically for the jewellery, watchmaking, and precision metal industries. Combining industrial performance with ease of use, it features a powerful diode-pumped fiber laser (available in 30W to 100W configurations), precise digital focus control via a motorized Z-axis, and both integrated and coaxial cameras to ensure optimal marking accuracy. The RR Next is built for continuous operation, with a self-contained air-cooling system that eliminates the need for external chillers, while its CE-certified Class 1 safety housing allows safe use without protective eyewear. With compatibility for intuitive MARKo software and advanced Samlight functionality, the RR Next is ideal for both entry-level users and experienced professionals.

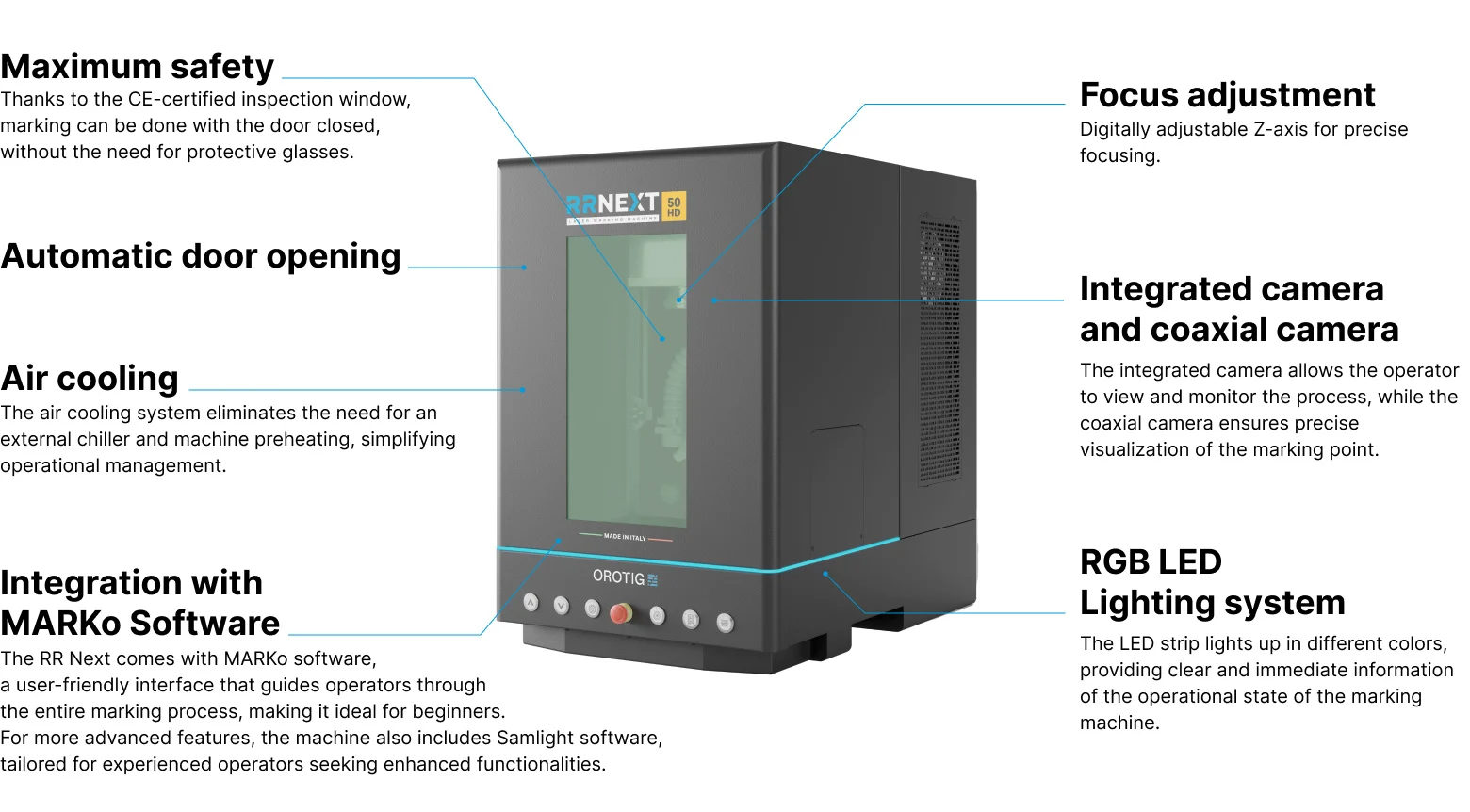

Features
-
Maximum Safety: CE-certified enclosed system with viewing window allows safe operation without safety glasses
-
Automatic Door Opening: Enhances convenience and productivity in fast-paced environments
-
Air Cooling System: Fully air-cooled, eliminating the need for external chillers or complex plumbing
-
Focus Adjustment: Digitally controlled motorized Z-axis (200mm travel) enables fast and precise focusing
-
Integrated Camera System: Includes live-view camera and coaxial camera for accurate positioning of engravings
-
RGB LED Lighting: Color-coded lights indicate the operational status of the machine at a glance
-
Software Integration: Comes preloaded with user-friendly MARKo software; compatible with Samlight for advanced functionality
Use Cases
-
High-precision engraving of serial numbers, logos, QR codes, and decorative designs
-
Laser cutting of thin metal sheets up to 2 mm thick
-
Jewellery personalization, hallmarking, and batch production
-
Watch back engraving and high-volume industrial marking
Specifications
-
Laser Type: Diode-Pumped Fiber (Yb), available in 30 W to 100 W HD
-
Engraving Area: 60×60 mm (100mm lens) to 145×145 mm (210mm lens)
-
Z‑Axis: Motorized with 200 mm vertical travel
-
Pulse Frequency: 1–4 kHz
-
Wavelength: 1064 nm
-
Cooling System: Air-cooled (no chiller required)
-
Software: MARKo standard, Samlight compatible
-
Safety Class: Class 1 enclosed (Class 3R when open)
-
Power Input: 230 V ±10%, single-phase, max 1.0 kW
-
Weight: Approximately 71kg (156.5lbs)
Additional Information
THIS ITEM IS SOLD WITHIN CANADA ONLY
