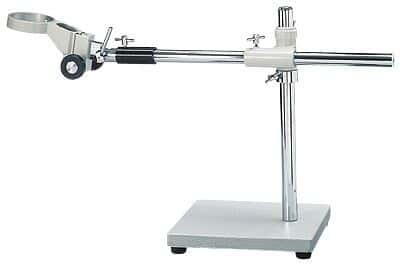

Key Features
- New Design: Solid stainless steel tube construction for maximum stability and reduced vibration.
- Reliable Support: The most sturdy and straightforward solution for holding and supporting microscopes.
- Flexible Use:
- Adjustable height.
- Easily swings to the side when the microscope is not needed.
- Mounting Options:
- Fixable on the back wall of the bench.
- Directly mountable on the bench top.
- Extended Reach: Now available with an extender arm for off-bench activities.
- Focusing Block: Includes a focusing block with an internal diameter of 84 mm.
- Recommended Camera (not included):
- Panasonic HC-VX3 Zwart
- Panasonic HC-VX3E-K 4K
Mounting Options
1. Jura-Style Bench Mounting
- Designed for benches with a mounting wall no more than 18" (45 cm) from the front edge.
- Not suitable for mounting behind a typical jeweler’s bench.
- Maximum extension of the horizontal tube: 12" (30.5 cm) (Ø 1-3/8").
- Vertical tube: 16-3/4" (425 mm) long (Ø 1-5/8").
- Fits into the 4-hole mounting bracket.
2. Direct Bench Top Mounting (New Version)
- Vertical tube: 16-3/4" (425 mm) long – ensures proper working distance between microscope and micro-block.
- Includes a mounting ring and bolt.
- Requires drilling a 3/8" hole in your bench top.
- Supplied bolt fits bench tops up to 1-1/2" (38 mm) thick.
- For thicker tops, a longer bolt is required.
- All adjustments can be made with the universal JURA Hex key.
Mounting Note
When mounted, the stand holds the scope slightly off-center to the right. If you prefer your microscope to be centered, install the 4-hole mounting bracket slightly left of center on your bench.
Microscope is NOT included
