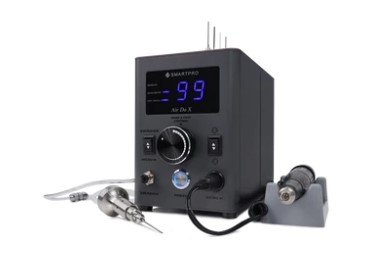

The Air‑Do X is an all‑in‑one bench system combining a pneumatic engraving graver with a built‑in compressor and a 35,000 RPM micromotor. Designed for jewelry bench work, it handles stone setting, engraving, drilling, polishing, buffing, lapping, and undercut inlay—all without needing an external air compressor. Dual foot and hand controls, a digital LED display, and overload protection make it user-friendly and safe. Compact, durable, and space-saving, the Air‑Do X is perfect for both professionals and hobbyists.
Features
-
Two-in-one: integrated pneumatic graver and micromotor on one bench system
-
Self-contained compressor—no external air source required
-
Engraving stroke speeds from 240 to 8,000 SPM
-
High-speed micromotor (35,000 RPM) for versatile drilling, polishing, and finishing
-
LED display, tool selection indicators, and overload safety features
-
Dual foot and hand-controlled operation for ergonomic precision
-
Compact footprint saves bench space
Use Cases
-
Stone setting and hand engraving on precious metals
-
Precision drilling, polishing, and lapping tasks
-
Quick tool change between pneumatic and micromotor functions
-
Ideal for engraving serial numbers, logos, or decorative patterns
Specifications
-
Engraver Stroke Speed: 240–8,000 SPM
-
Micromotor Speed: Up to 35,000 RPM; torque ~2.8 N·cm
-
Power Input: 100–240 VAC, 4.2 A, 50/60 Hz
-
Controls: Foot pedal & hand knob with LED display
-
Dimensions: 240 × 130 × 185 mm (9.5″ × 5.1″ × 7.3″)
-
Weight: Approximately 5.0 kg (11 lbs)
Includes
-
Air‑Do X control box (with built-in compressor)
-
Pneumatic engraving handpiece with hose
-
Micromotor handpiece with stand
-
Six carbon carbide engraver bits
-
Three 2.5 mm collets and three 3.5 mm collets
-
Foot pedal controller
-
Power cord (IEC C13)
-
User manual and warranty card
