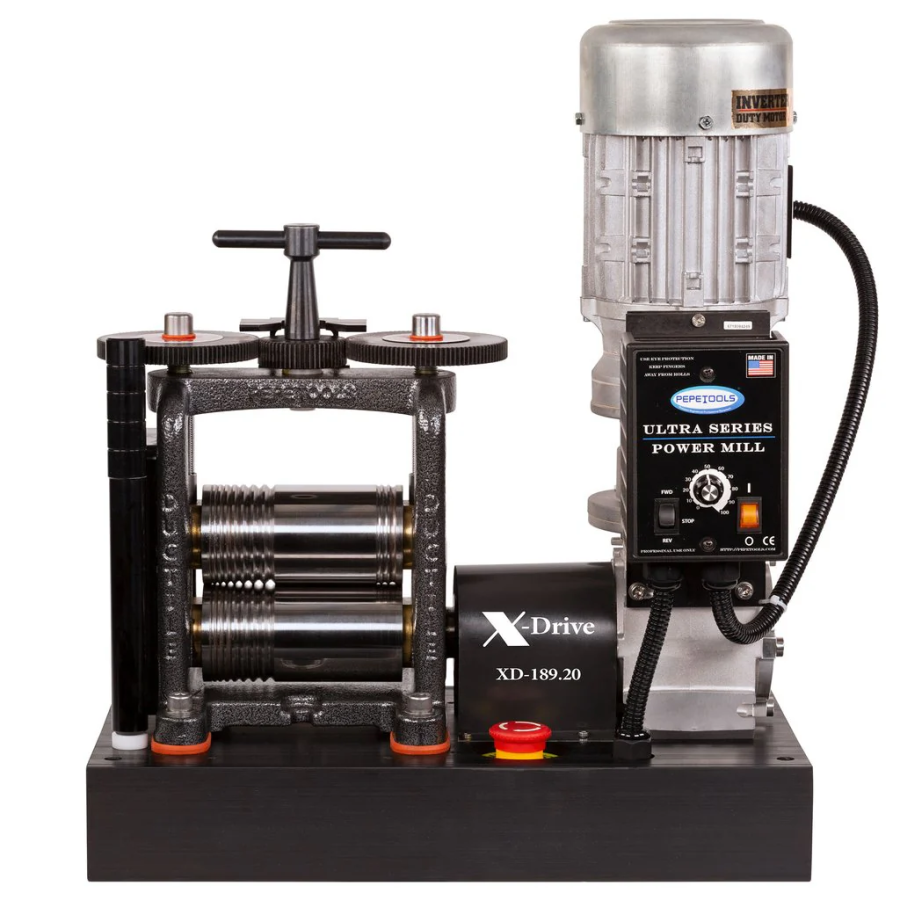

The lastest addition to Pepe Tools' line of Ultra Series Rolling Mills is this motorized 130 mm mill with combination rollers having both flat and wire forming sections.
Like its manual brothers, the frame of this mill is fashioned from high strength iron for added strength and durability.
The rolling mill and high torque motor are mounted on a base machined from structural grade aluminum.
Pepe's own precision-machined gear box is coupled to a heavy duty 1/2 HP AC motor with an electronic speed control adjustable over a range from 0 to 12 RPM in forward or reverse.
Safety features include an emergency stop, auto shut off control, and protective stainless steel bars on both ends of the rolling mill. Made in USA. Model 189.20.EL-120V
- Roll length: 130 mm
- Roll diameter: 65 mm
- Flat Section: 66 mm wide
- Wire Section: 8 square grooves, 4.5 to 1 mm
- Half Round Grooves: 4 x 1.5 mm, 3 x 1.25 mm, & 2.5 x 1 mm
- Max Opening: 5 mm
- Dimensions: 18"W x 10"D x 17"H Shipping weight: 109 lbs
- Shipping weight: 109 lbs
